Wemos D1 Pro CP2104 4M !!! (Very good WIFI)

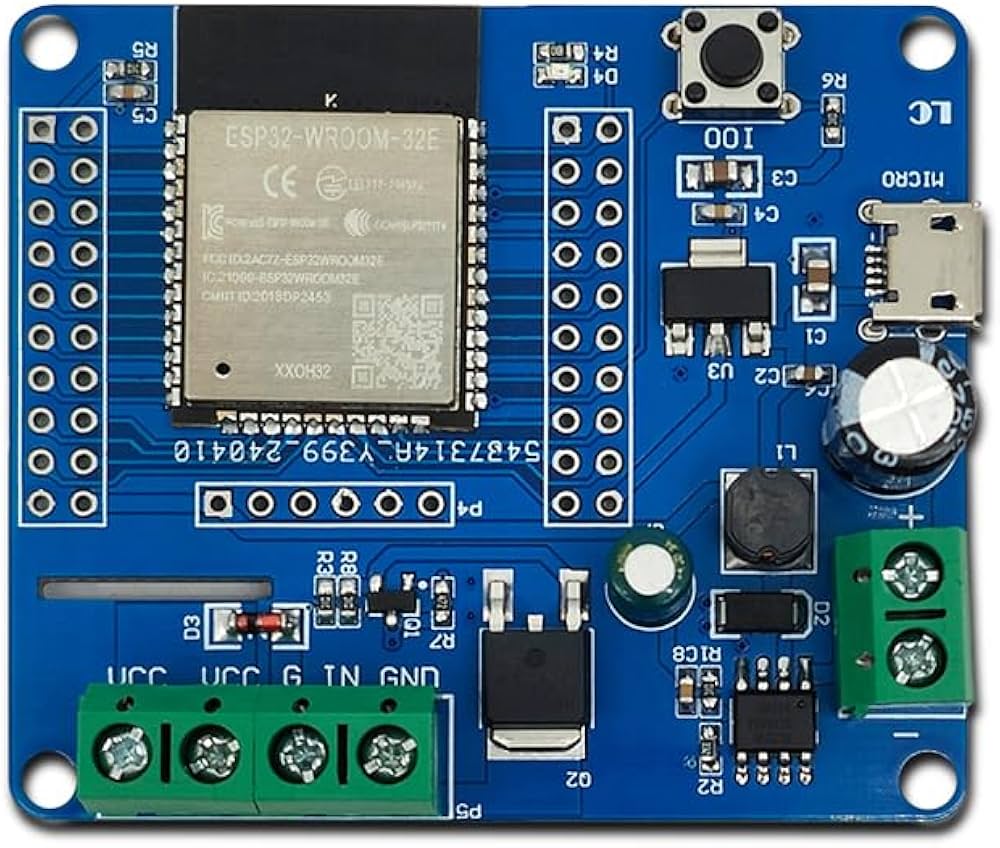

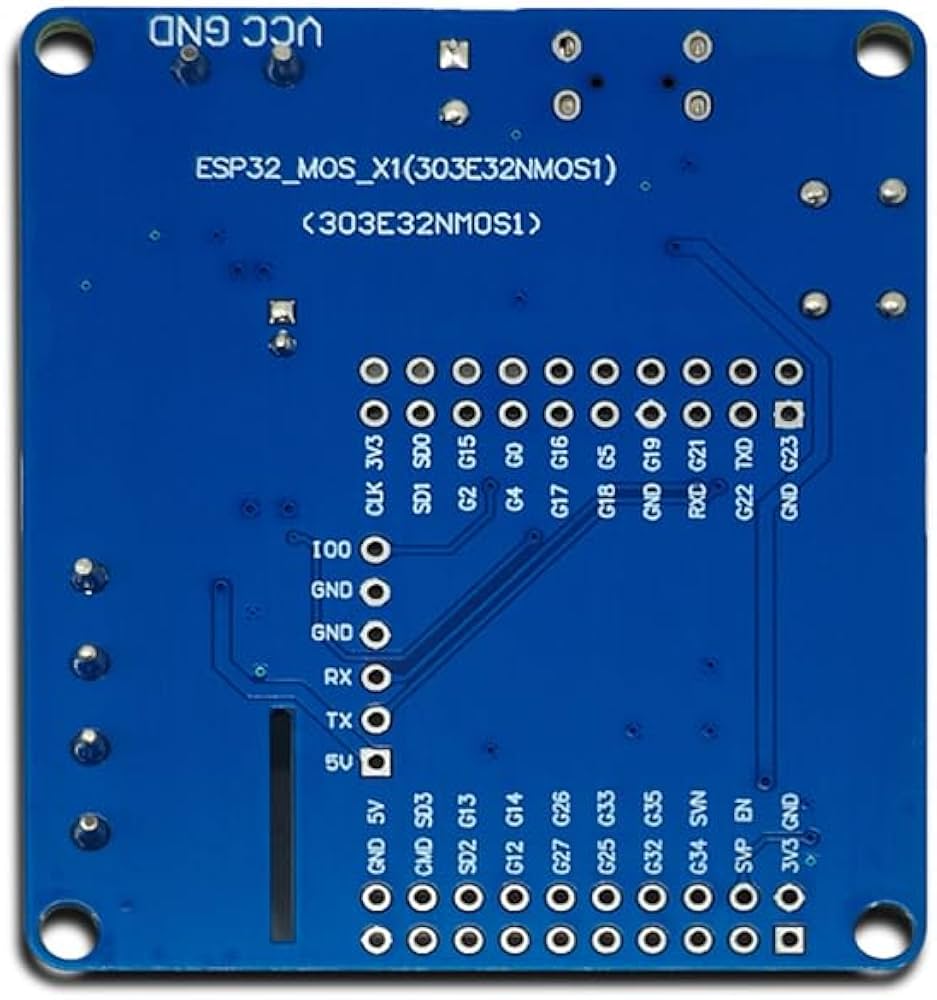

ESP32_MOS_X1 (303E32NMS1) (weak wifi)
- Flashed with:
- ESPEasy_mega_20240822_ESP32_binaries\bin\blank_4MB.bin
- To erase all content
- ESP_Easy_mega_20240822_normal_ESP32_4M316k.factory.bin
- Very weak WiFi, keep it in the neighbourhood of the access point.
- To switch on the onboard LED
https://www.pzuidam.nl/dc-powered-esp32-single-mos-switch-module-5-80v-input-develo/ (WEAK WIFI)
https://www.pzuidam.nl/dc-power-supply-esp12f-single-mos-switch-module-5-80v-input/ (GOOD WIFI)

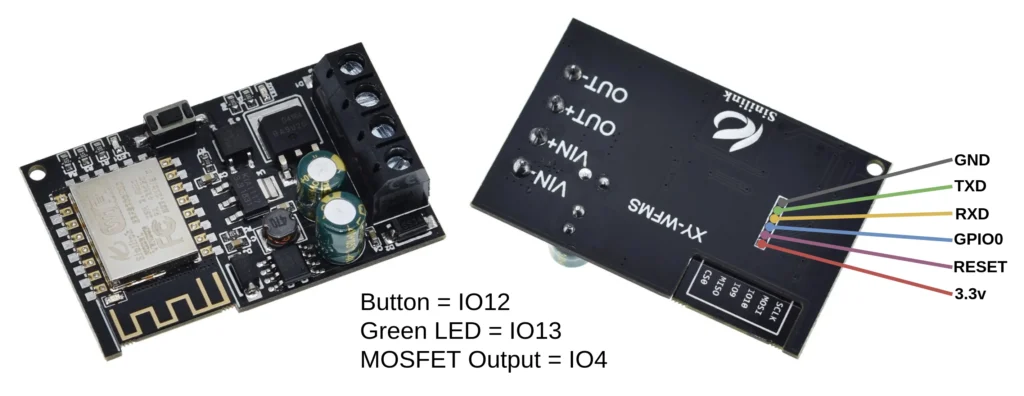

ESP8266 with mosfet
AliExpress search “Sinilink”.
input 5-36 volt

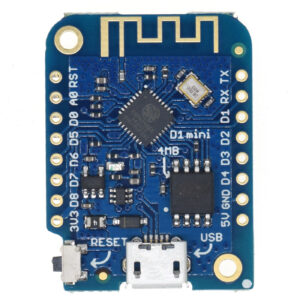

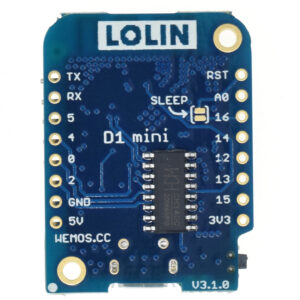

WEMOS D1 MINI 4MB

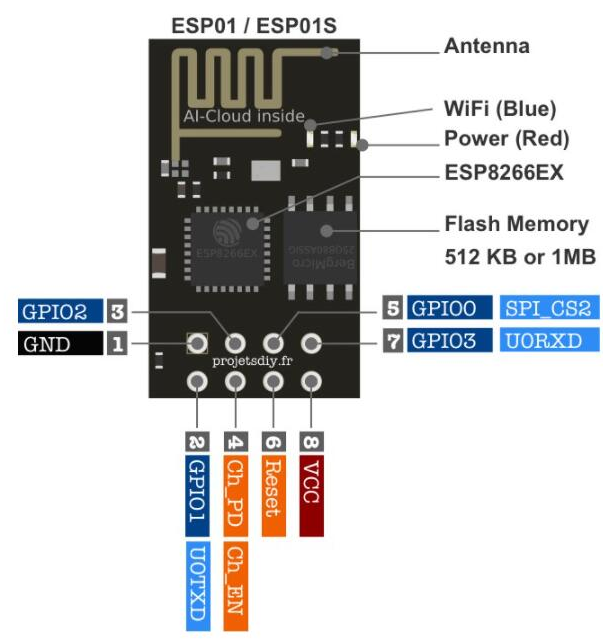

ESP-01
| ESP01S | |
| Flash Chip ID | Vendor: 0x85 Device: 0x2014 |
| Flash Chip Real Size: | 1024 kB |
| Flash IDE Size: | 1024 kB |
| Flash IDE speed: | 40 MHz |
| Flash IDE mode: | DIO |
| Flash Writes | 0 daily / 0 boot |
| Sketch Size | 664 kB (208 kB free) |

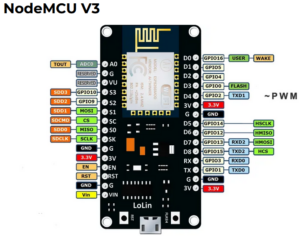

Node MCU
| Flash Chip ID: | Vendor: 0x5E Device: 0x4016 |
| Flash Chip Real Size: | 4096 kB |
| Flash IDE Size: | 1024 kB |
| Flash Chip Speed: | 40 MHz |
| Flash IDE Speed: | 40 MHz |
| Flash IDE Mode: | DOUT |
| Flash Writes: | 0 daily / 0 boot |
| Sketch Size: | 868 kB (4 kB free) |
| Max. OTA Sketch Size: | 599 kB (614384 bytes) |
| OTA possible: | false |
| OTA 2-step Needed: | true |
| SPIFFS Size: | 110 kB (56 kB free) |
For testing:
http://”IP-address”/control?cmd=GPIO,2,0 turns onboard led on
esptool.exe -vv -cd nodemcu -cb 115200 -cp com11 -ca 0x00000 -cf ESPEasy_1M_128kSPIFFS_PUYA.bin
